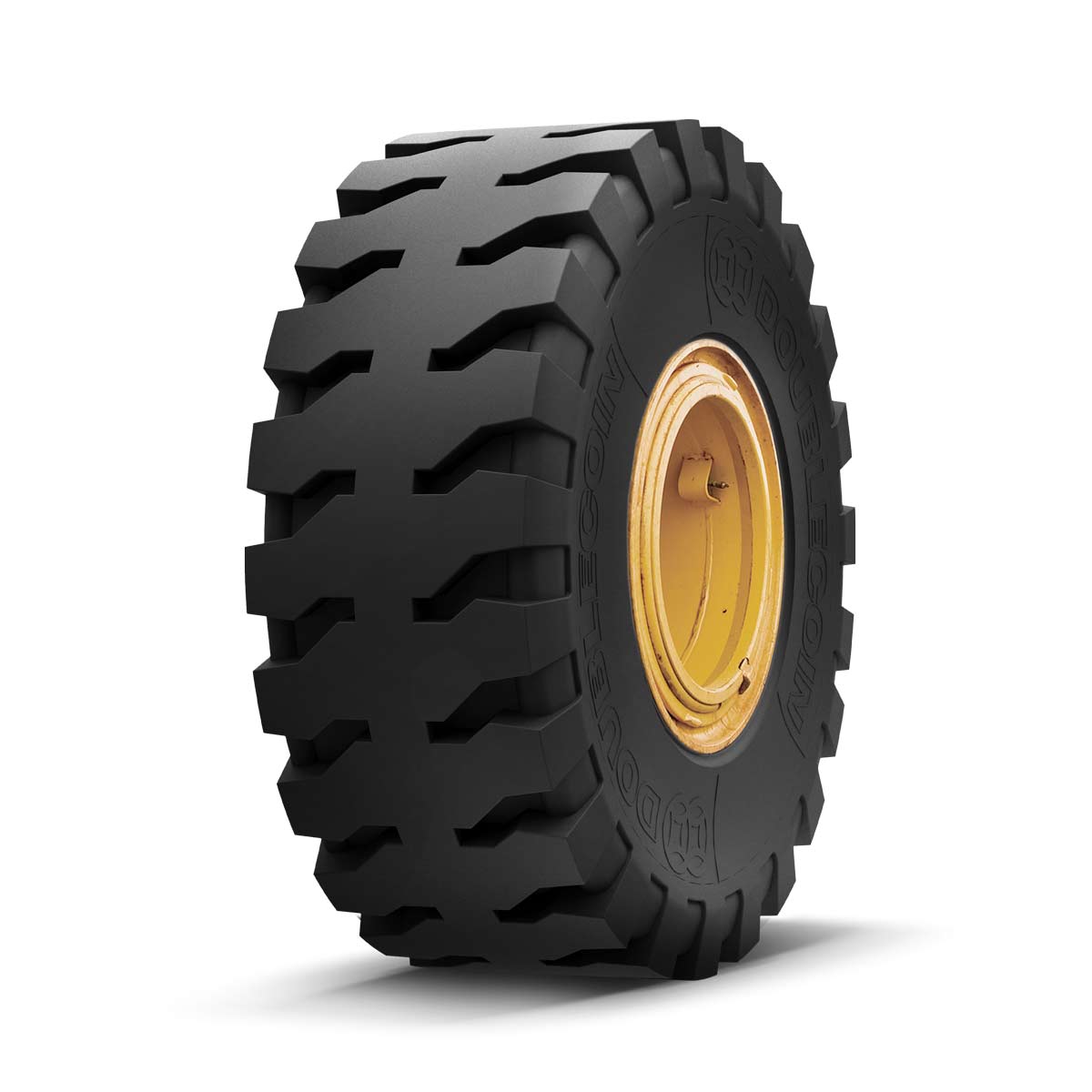

REM-12
(L5) Mining loader tire
REM-12
(L5) Mining loader tire
Built with special cut/chip resistant compounds to withstand severe rock mining applications and promote long-term retreadability, the Double Coin REM-12 OTR has a unique non-directional tread design for optimum performance, and superior traction.
REM-12 Highlights
-
Multi-function, non-directional tread design for optimum usage on equipment
-
Unique center block tread design provides additional traction, enhanced smooth ride and even wear
- Superior traction in sand, stone, mud and other surfaces
Additional information
| DC Application | Construction, Mining |
|---|---|
| DC Positions | Small OTR |
| Double Coin OTR Tire Size | 17.5R25, 26.5R25, 29.5R25 |
REM-12 Specifications
Product Code
Size
Pattern
Load Symbol
Speed Max (KM/H)
Speed Max (MPH)
Overall Diameter (inch)
Section Width (inch)
Tread Depth (32nds)
RIM
Single Max Load/Pressure
Tire Weight
Tire Type
1107127252
17.5R25
REM-12
★★
6
3
55
19
84
14.00/1.5
15620lb/73psi
251kg/563lb
TL
1107126253
26.5R25
REM-12
★★
10
5
71
27
116
22.00/3.0
33000lb/65psi
651kg/1452lb
TL
1107122956
29.5R25
REM-12
★★
10
5
75
31
126
25.00/3.5
39600lb/65psi
838kg/1672lb
TL
