REM-19

(L5) Loader tire

REM-19

(L5) Loader tire

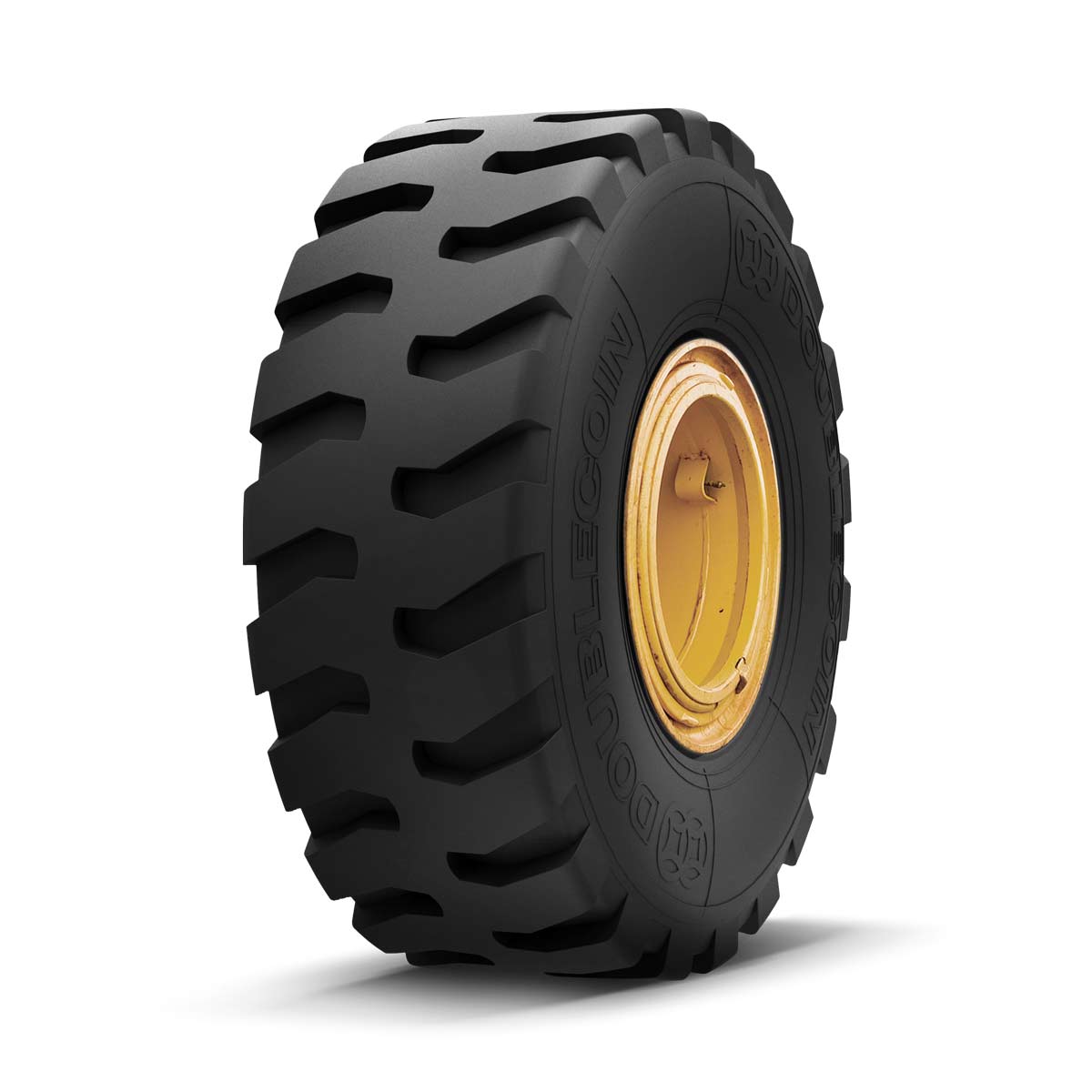

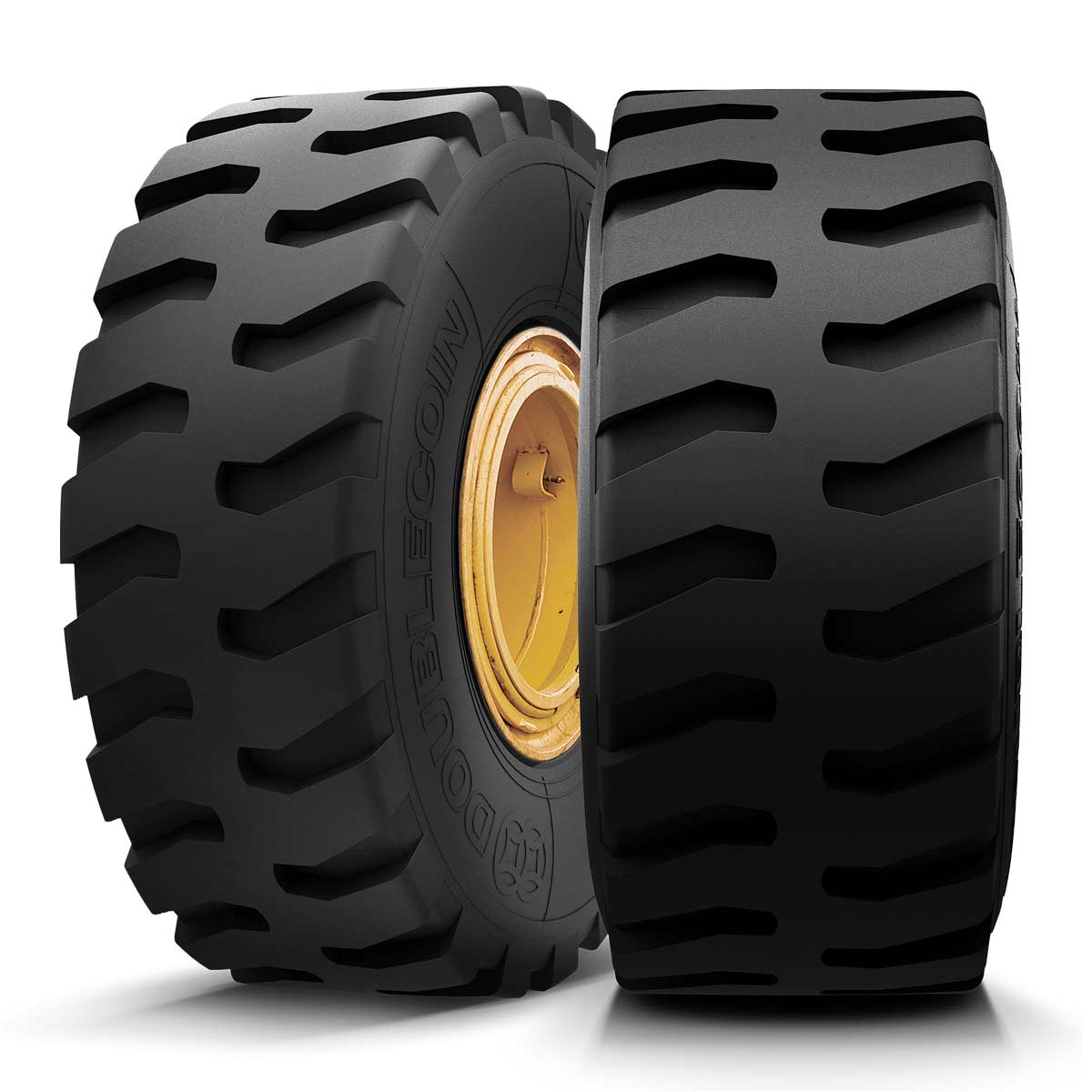

The Double Coin REM-19 is a radial OTR tire built for a wide variety of loader applications. Its special chip and cut resistant compounds promote an extended original tread life and promote long-term retreadability. Designed with a wide footprint and center rib for stability, this Off-the road tire features a non-directional tread design for additional traction in multiple applications.

Compare

REM-19 Highlights

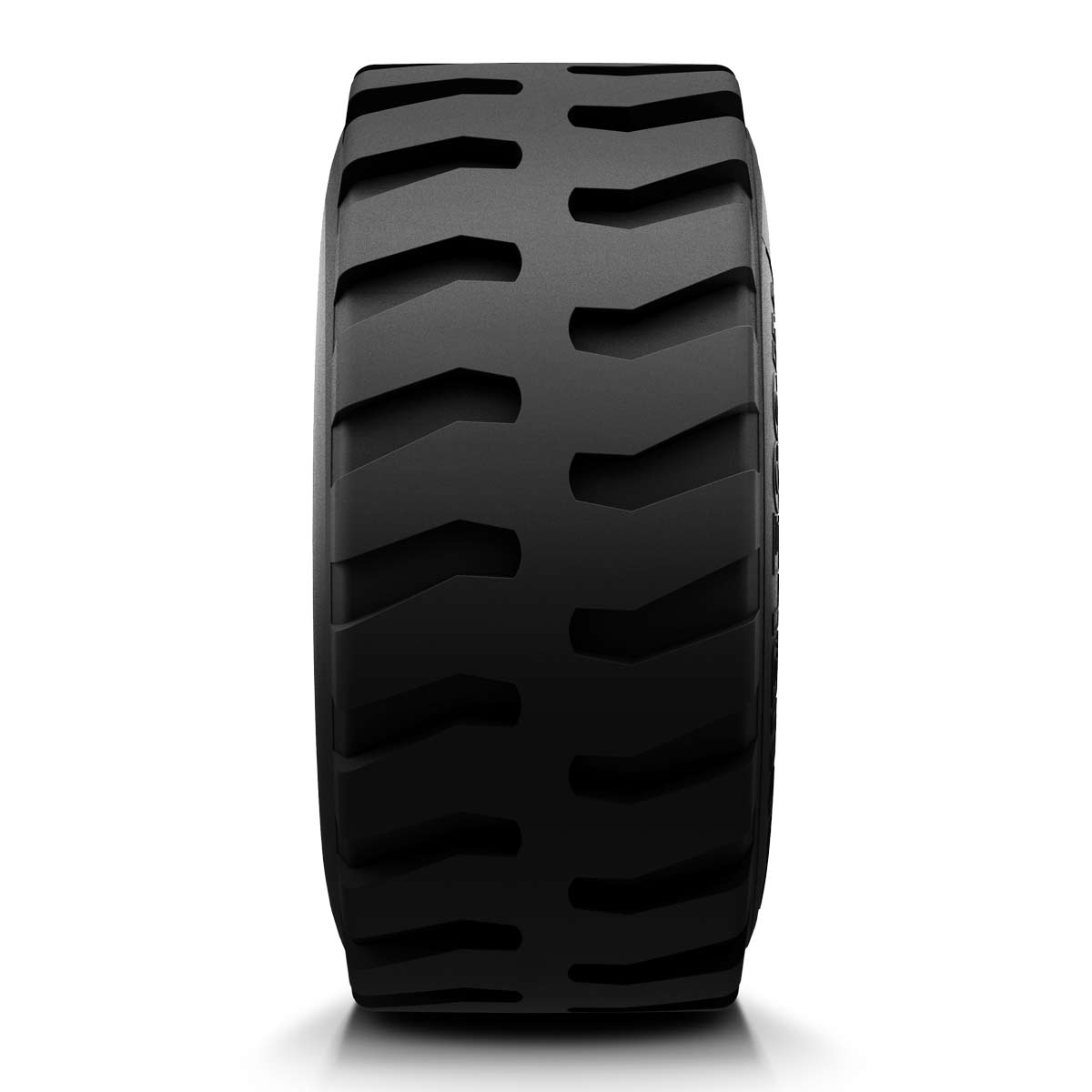

  • Non-directional tread pattern with center rib provides enhanced traction

  • Special cut and chip resistance compounds extend tire life and promote retreadability

  • Wide footprint for stability; center riding rib for ride comfort

Additional information

DC Application

Construction, Mining

DC Positions

Small OTR

Double Coin OTR Tire Size

20.5R25, 23.5R25, 26.5R25, 29.5R25

REM-19 Specifications

Product Code
Size
Pattern
Load Symbol
Speed Max (KM/H)
Speed Max (MPH)
Overall Diameter (inch)
Section Width (inch)
Tread Depth (32nds)
RIM
Single Max Load/Pressure
Tire Weight
Tire Type
1087190251
20.5R25
REM-19
★★
10
5
61
21
91
17.00/2.00
25353lb/94psi
295kg/650lb
TL
1087193251
23.5R25
REM-19
★★
10
5
66
24
98
19.50/2.50
31967lb/94psi
451kg/995lb
TL
1087196253
26.5R25
REM-19
★★
10
5
71
27
116
22.00/3.0
40785lb/94psi
634kg/1397lb
TL
1087192955
29.5R25
REM-19
★★
10
5
75
31
126
25.00/3.5
49384lb/94psi
762kg/1628lb
TL

Resources

REM-19 Specification Sheet

OTR Limited Warranty
