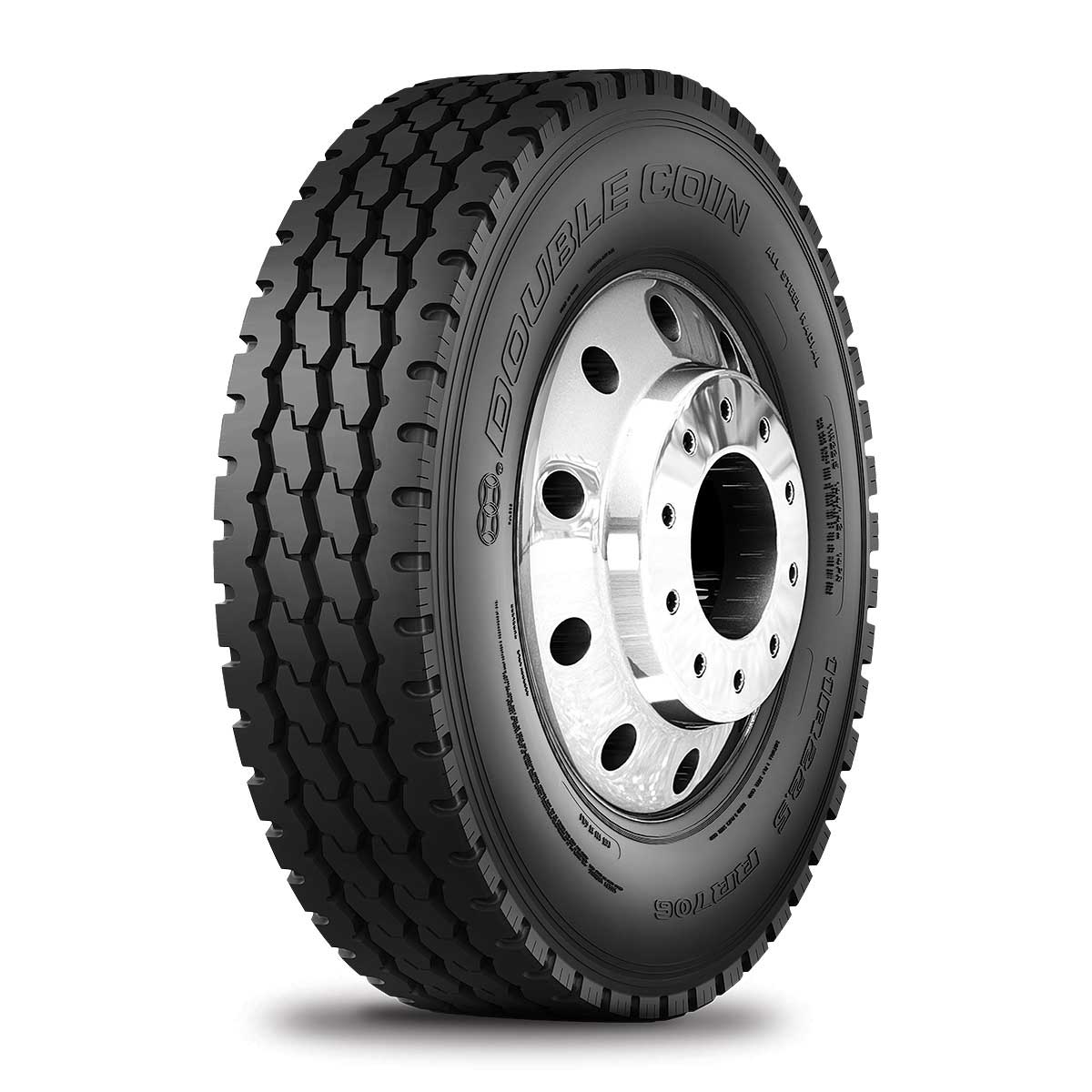

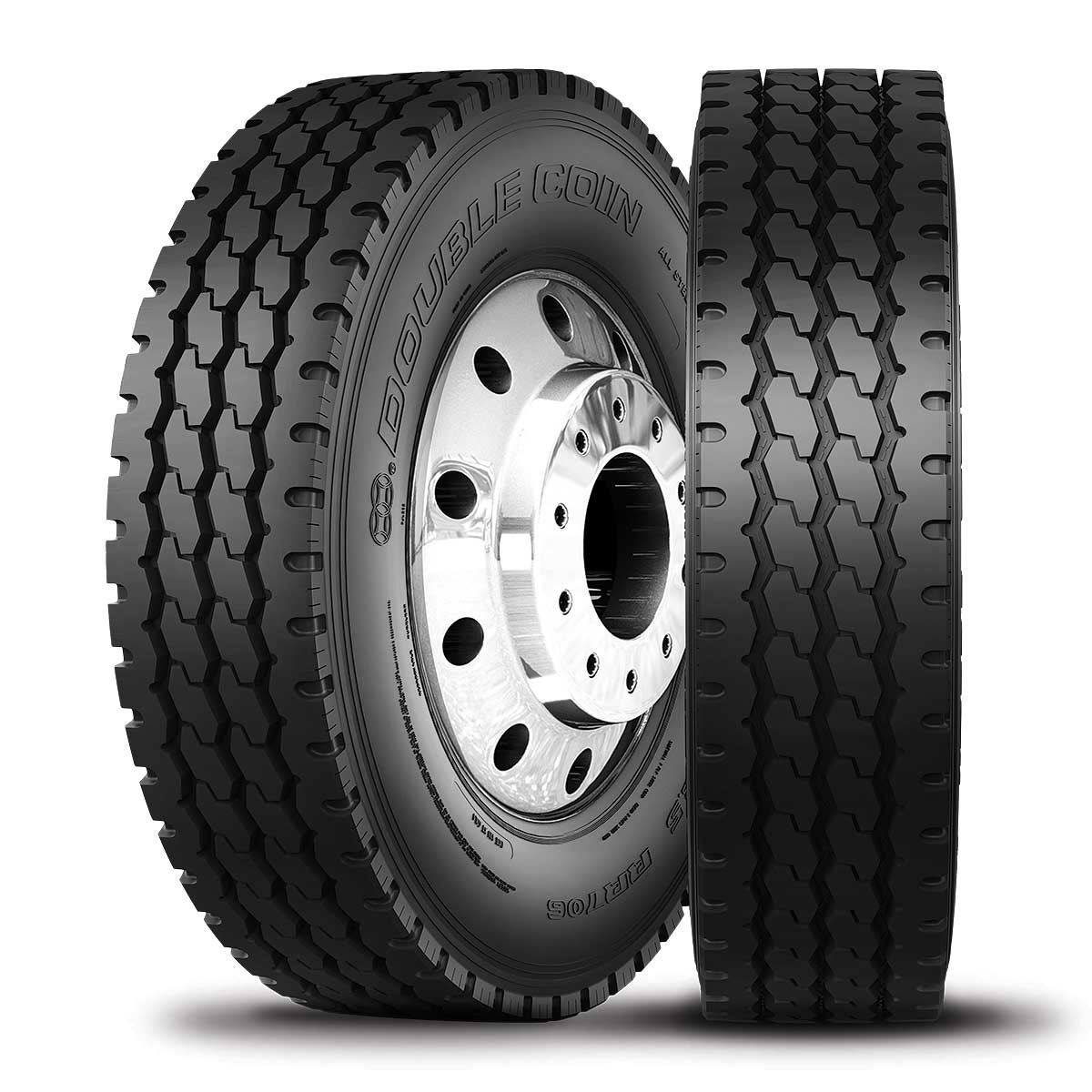

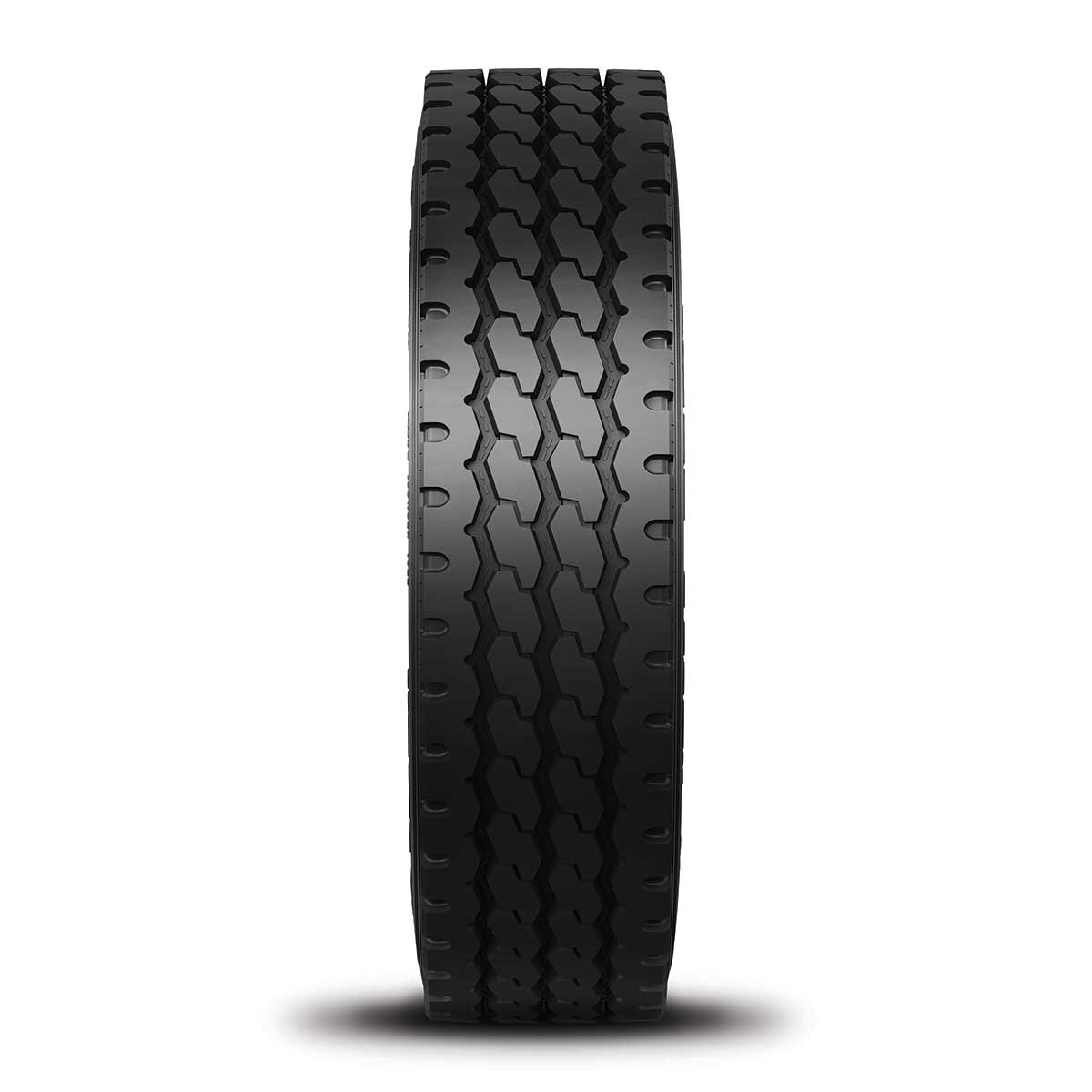

RR706
Ultra-premium mixed service all-position tire
RR706
Ultra-premium mixed service all-position tire
The ultra premium Double Coin RR706 is a rugged all-position tire meticulously engineered with advanced compounds to enhance tire performance in the toughest applications, including the waste and refuse industry.
RR706 Highlights
-
Aggressive mixed service compounds and durable casing design provide resistance to chips/cuts and damage from scrubbing
-
Thick solid shoulders with special groove cuts keep the tread surface stable for longer wear while providing traction in tough conditions
-
Unique angled block separation for improved evacuation of water, mud, and soft soil
Additional information
| DC Application | Mixed Service |
|---|---|
| DC Positions | All Position |
| Double Coin TBR Tire Size | 11R22.5, 11R24.5, 12R22.5, 12R24.5, 295/80R22.5, 315/80R22.5 |
RR706 Specifications
Product Code
Size
Ply Rating
Load Range
Load Index
Speed Symbol
Overall Diameter (inch)
Section Width (inch)
Tread Depth (32nds)
RIM
Single Max Load/Pressure
Dual Max Load/Pressure
Static Load Radius
Revs per Mile
Weight (lb)
Tire Type
1137061256
11R22.5
16
H
148/145
L
41.7
11.1
25
8.25
6940lb/123psi
6390lb/123psi
19.4
498
126
TL
1137061456
11R24.5
16
H
149/146
L
43.6
11.0
25
8.25
7160lb/120psi
6610lb/120psi
20.4
477
133
TL
1137062258
12R22.5
18
J
152/149
L
43.0
11.8
24
9.00
7830lb/135psi
7160lb/135psi
20.1
484
132
TL
1137062456
12R24.5
16
H
152/149
K
45.1
11.8
26
9.00
7830lb/120psi
7160lb/120psi
21.2
466
145
TL
1137069258
295/80R22.5
18
J
152/149
K
41.6
11.9
22
9.00
7830lb/130psi
7160lb/130psi
19.2
500
131
TL
1137061258
315/80R22.5
20
L
157/154
L
43.0
12.4
24
9.00
9090lb/130psi
8270lb/130psi
19.6
483
154
TL
