TR100
Ultra-premium shallow tread trailer-position tire
TR100
Ultra-premium shallow tread trailer-position tire

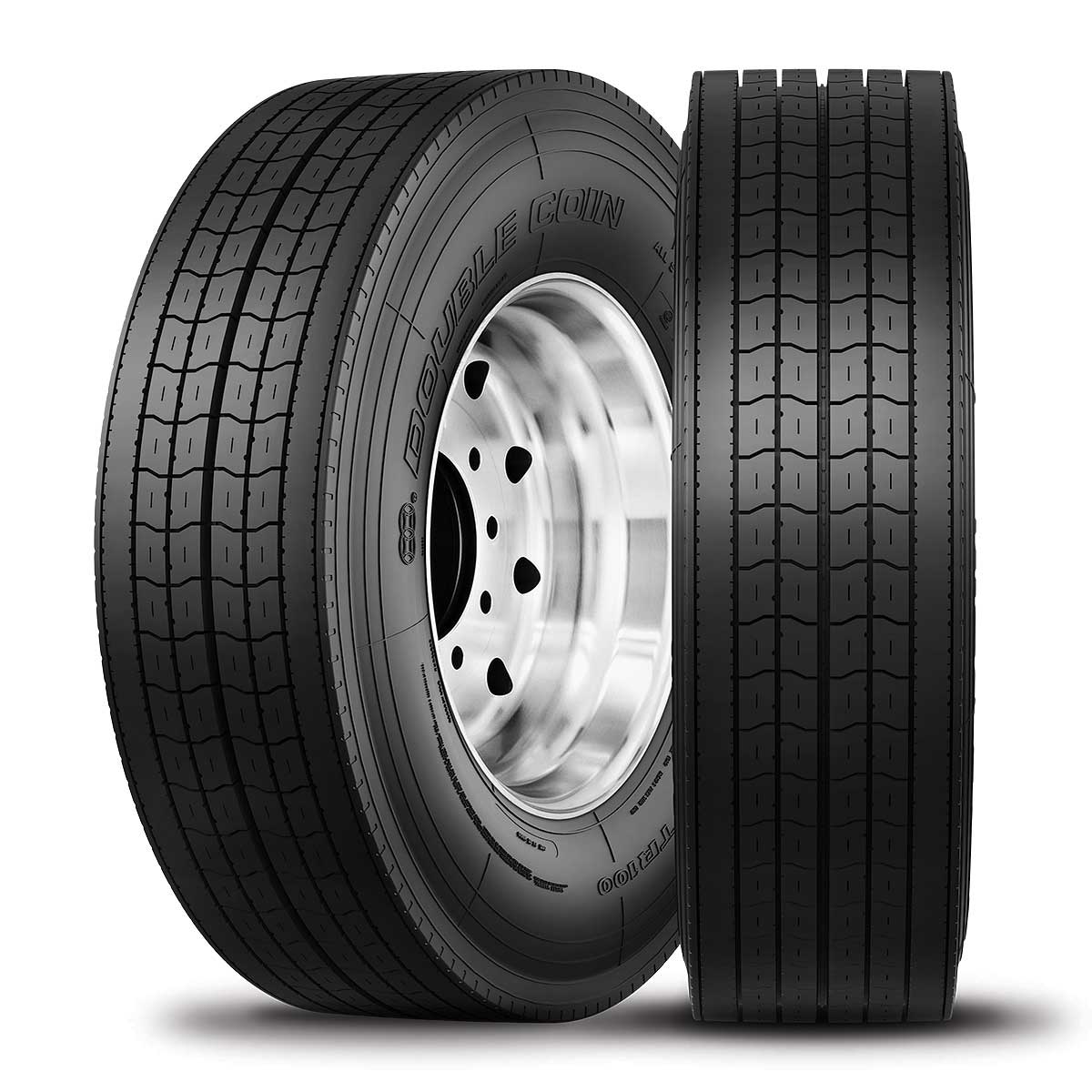

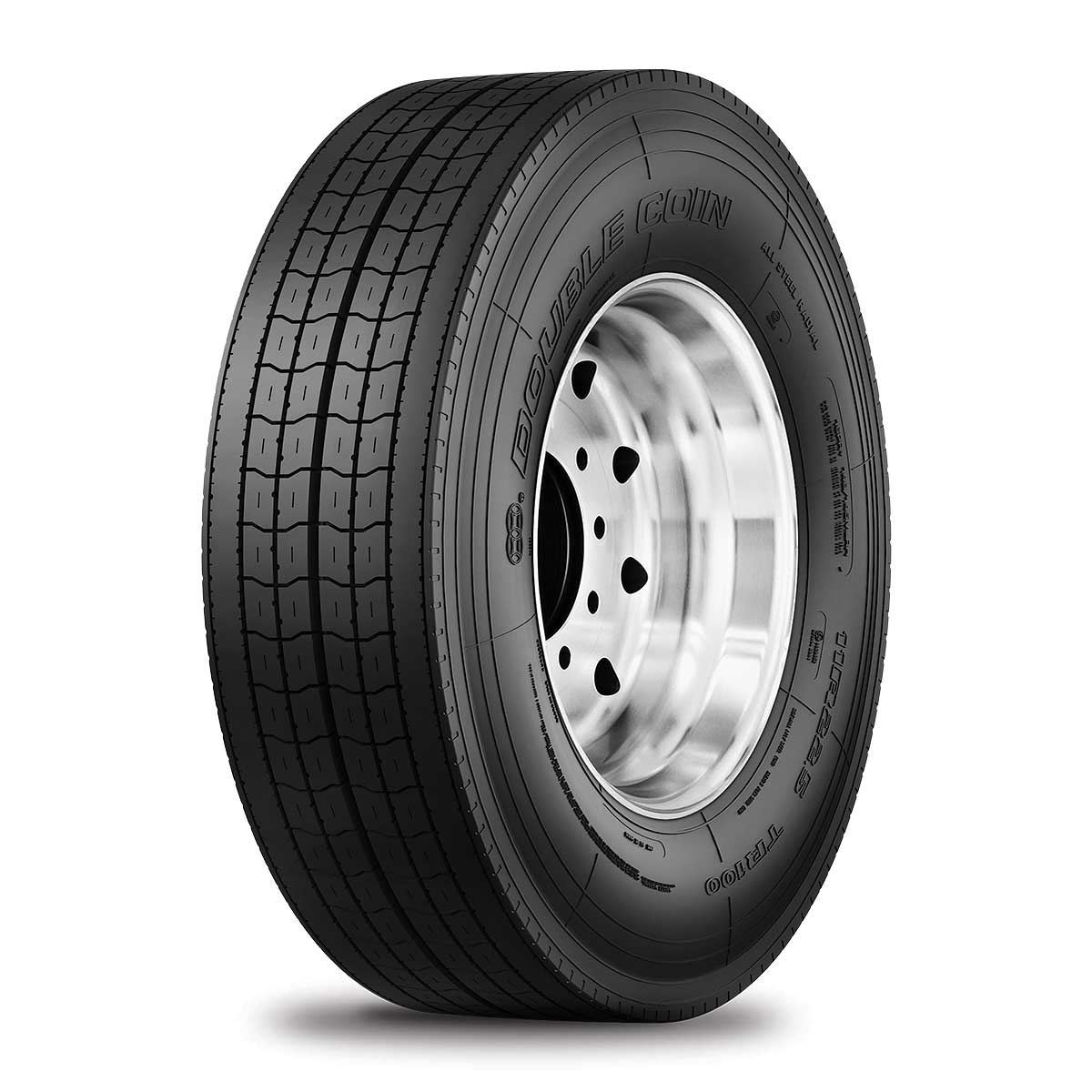

The Double Coin TR100 is a shallow tread trailer position tire designed for all types of trailer applications. Built to provide superior tread life, the TR100 trailer tire features multiple siping and wide shoulders to prevent irregular wear that occurs in free rolling positions.
TR100 Highlights
-

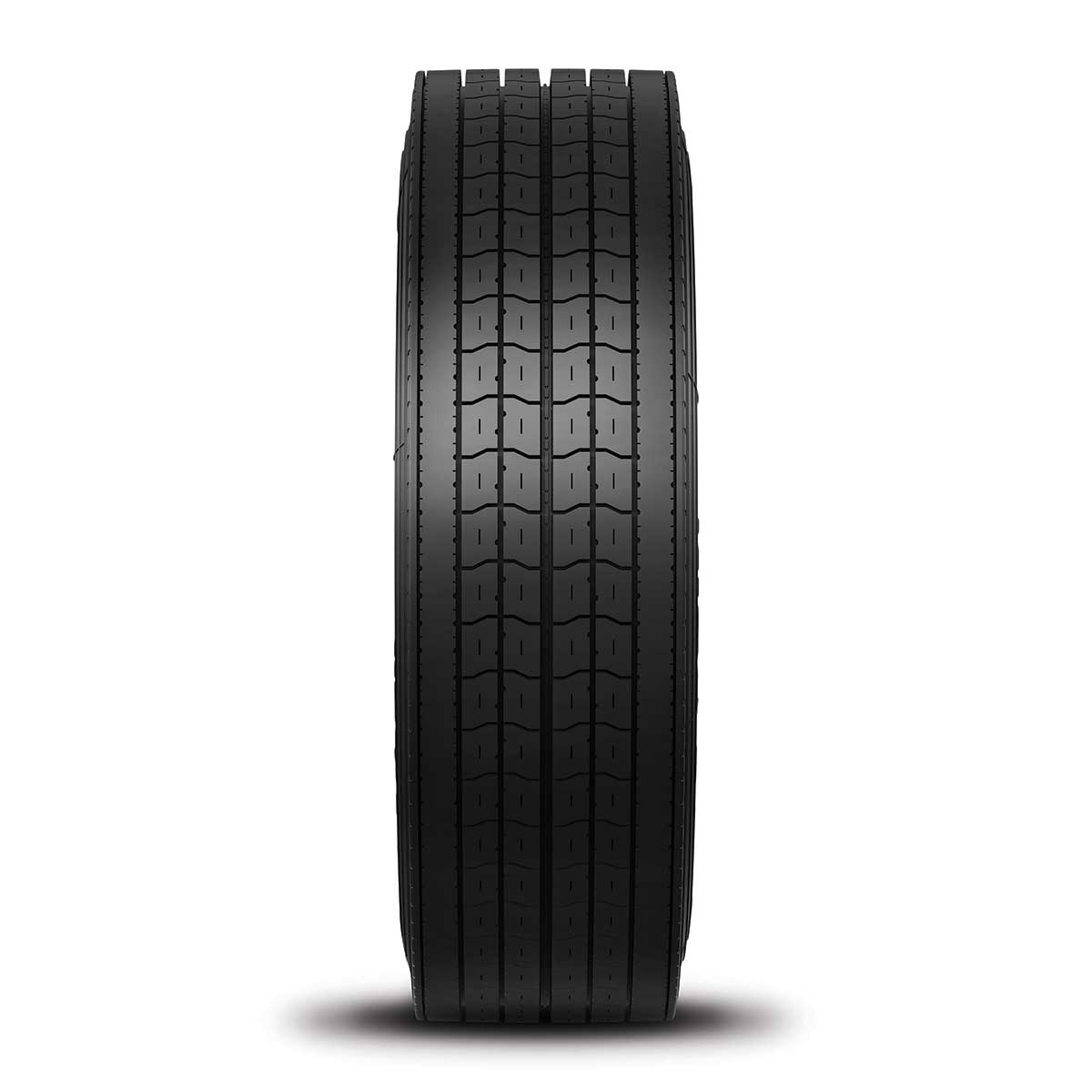

Tread design promotes even wear in free rolling/trailer axle positions
-
Center rib designed to eject stones, preserving casing integrity and promoting multiple retreads
-
14/32" tread depth delivers long original mileage
Información adicional
| DC Application | Long Distance, Regional |
|---|---|
| DC Positions | Trailer |
| Double Coin TBR Tire Size | 11R22.5, 11R24.5, 285/75R24.5, 295/75R22.5 |
TR100 Specifications
Product Code
Size
Ply Rating
Load Range
Load Index
Speed Symbol
Overall Diameter (inch)
Section Width (inch)
Tread Depth (32nds)
RIM
Single Max Load/Pressure
Dual Max Load/Pressure
Static Load Radius
Revs per Mile
Weight (lb)
Tire Type
1133381255
11R22.5
14
G
144/142
M
41.0
10.9
14
8.25
6175lb/105psi
5840lb/105psi
19.5
500
113
TL
1133381256
11R22.5
16
H
148/145
M
41.0
10.9
14
8.25
6940lb/123psi
6390lb/123psi
19.5
500
116
TL
1133389255
295/75R22.5
14
G
144/141
M
40.2
11.7
14
9.00
6175lb/110psi
5675lb/110psi
18.9
510
114
TL
1133381455
11R24.5
14
G
146/143
L
42.9
10.9
14
8.25
6610lb/105psi
6005lb/105psi
20.8
476
124
TL
1133381456
11R24.5
16
H
149/146
L
42.9
10.9
14
8.25
7160lb/120psi
6610lb/120psi
20.8
476
125
TL
1133388455
285/75R24.5
14
G
144/141
L
41.1
11.0
14
8.25
6175lb/110psi
5675lb/110psi
19.3
505
114
TL
